Zig Zag Junior
£710.00
Select a size
Select a option
 In Stock
 3 Working Days

Customer reviews
Sorry, no reviews available at the moment.

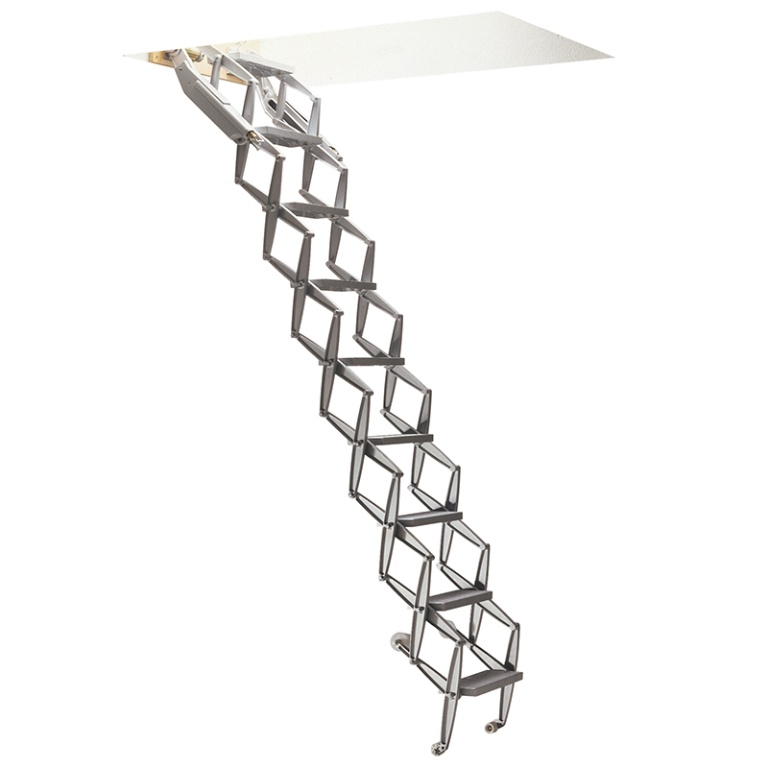

The Zig Zag Junior stairway is manufactured from die cast aluminium components and is generally used as a commercial stairway with a load capacity of 200kgs per tread, 500kgs for the overall stairway unit.

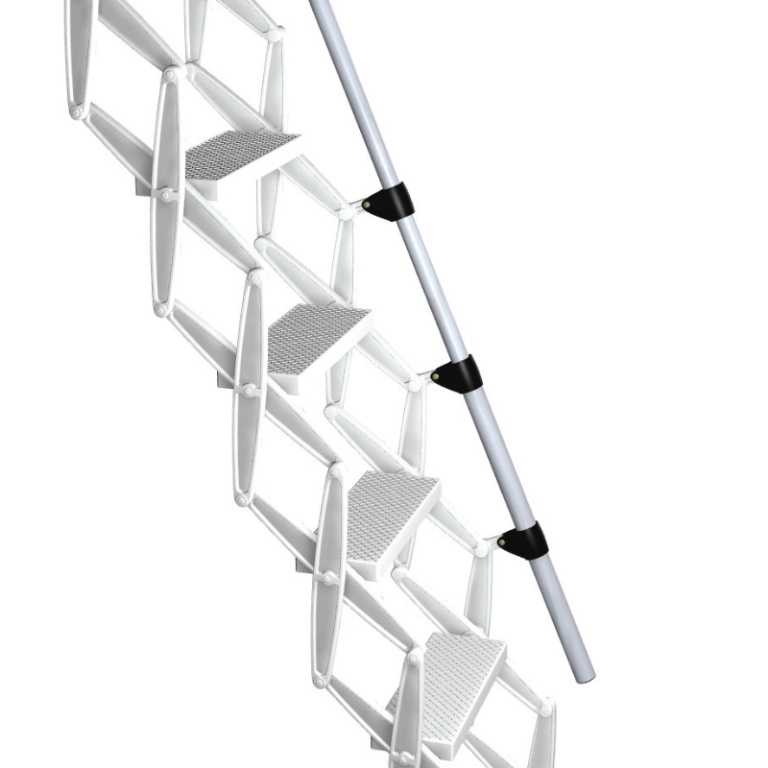

Offered without hatch and frame Heavy Duty Incorporates counter balance spring hinged to a plywood backing plate deep safe treads easy to operate optional telescopic handrail available

Industrial Stair Specification

Manufactured to DIN EN 14975 (DIN4570), a stairway unit supplied as a ready to fit unit comprising

of a counter balanced, sprung aluminium stairway made from die cast components.

Ladder Specification

  • Floor to Fixing Height: Maximum of 3390mm to bottom edge of backboard
  • Opening Length: Minimum required see chart on detailed description (tab above)
  • Opening Width: Minimum required see chart on detailed description (tab above)
  • Mounting Headboard size 590mm wide x 200mm
  • Tread Size: 350 x 140mm for stairways up to 11 treads and 300 x 140mm for 12 treads
  • No of Treads: 9 - 12
  • Load Capacity: 200kg
  • Operating Pole Supplied

Safety testing:

  • Tested to the European standard DIN EN 14975 (TÜV SÜD)

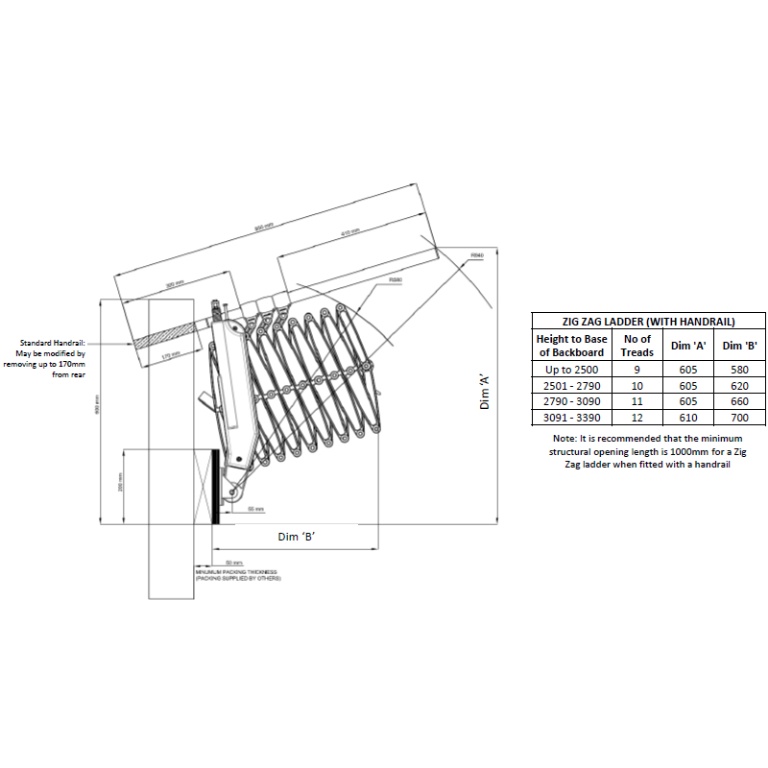

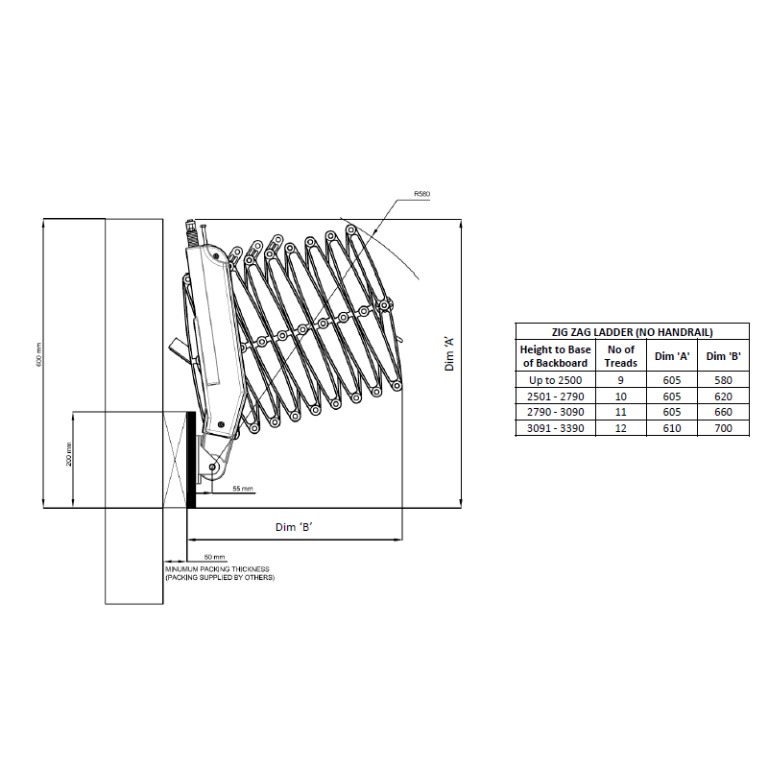

Treads

Floor to Ceiling (Dim 'A')

Minimum Aperture Width

Minimum Aperture Length

SetdownPoint(α= 200 Dim 'B')

9

2200 -2500

590

620

1130

10

2501 -2790

590

670

1240

11

2791 -3090

590

750

1340

12

3091 -3390

590

820

1450

The above is listed as the absolute minimum but ideally you require the below for the zig zag junior

9 Tread - 750mm (List shows 620mm)

10- Tread - 800mm (List Shows 670mm)

11 Tread - 850mm (List shows 750mm)

12 Tread - 900mm (List Shows 820mm

For easy access make the length as long as is possible, an ideal would be 900mm - 1000mm for easy access.
