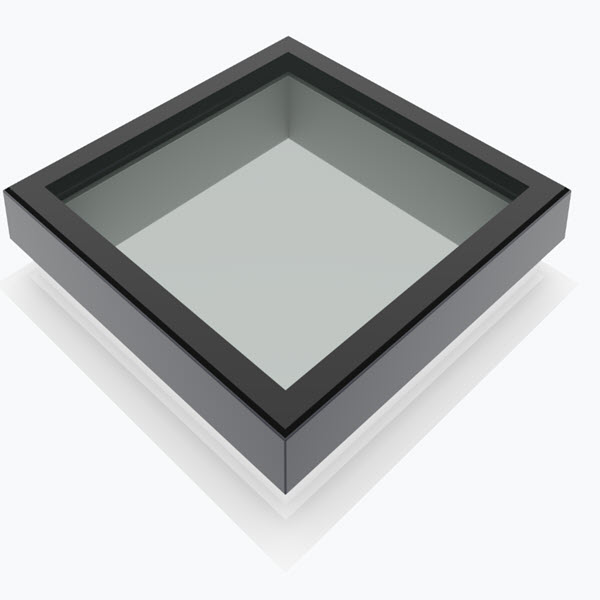

Loft Shop Fixed Flat Glass with 150mm PVC ECO Vertical Upstand
£636.00
Select a size
Select a option
 In Stock
 3 Working Days

Customer reviews
Sorry, no reviews available at the moment.


The Loft Shop glass unit rooflight is designed to maximise the amount of natural daylight in a building and at the same time provide a clean and minimalistic finish both inside and outside.  They are manufactured with flat sealed glass units and incorporate a fully welded aluminium frame and cill detail.  All visible aluminium is polyester powder coated light grey as standard. The flush design ensures efficient drainage of rainwater and the silkprint edge ensures that the double glazed unit holds the unrivaled insulation value over the full time without deterioration.

  • Prefabricated
  • Simple to install
  • flush design
  • Unrivaled insulation value
  • Ventilation options
  • Low E argon filled sealed units

Performance

Thermal Regulations
The doble glazed unit exceeds current thermal requirements and the triple glazed unit gives an industry leading performance

Sound Reduction
With glass panes each at 8mm thich and a 16mm argon filled cavity the sound reduction will give excellent protection from traffic or other noise

Installation
As the units are supplied prefabricated and assembled they are very simple to fix to the roof deck

Glazing

The double glazed rooflights are manufactured with 32mm hermetically sealed Low E, argon filled units as standard, with a warm edge spacer, providing a high performance system.  Solar control and self cleaning glass options are available.

Size

Offered in a range of standard sizes some of which are stocked ready for immediate dispatch.  Other non-standard sizes are available to order.

Testing

Requirement Result Classification
Watertightness  Passed  EN1873
Air Tightness  Class 4 (600pa) EN12207/EN1026
Sound Insulation 34 (-2, -4) db   DS/EN717-1/A1
Light transmission 86%
Weight  55 kg/m2
Thermal Insulation  1.24 W/m2K  EN/ISO 10077-1
EN/ISO 10077-2
EN673
DS418

Installation

These rooflights can be fitted on a slope between 5 and 15 degrees
