Fakro ELV roof window flashing is a general purpose roof window flashing for use with slate roofs

• For natural and man made slates up to 10mm thickness
• Grey/brown RAL 7022
• Can be installed at any of 3 depths

EL flashing is ideal for a flush fit of a window with flat tiled or slated roofs. It is applied as standard to individual windows in the slope of the roof. A series of window units may also be combined:

• for V depth in vertical, horizontal and block groups
• for J depth horizontal combination only.

This flashing is available in two different types allowing windows to be installed at two different depths in the roof construction V (0) and J (-3cm).

The standard installation of windows with the application of flashingELisV?versionELV.

Can be used in roofs with pitches:

• from 15° to 90° for depths N and V,
• from 20° to 90° for depth J.

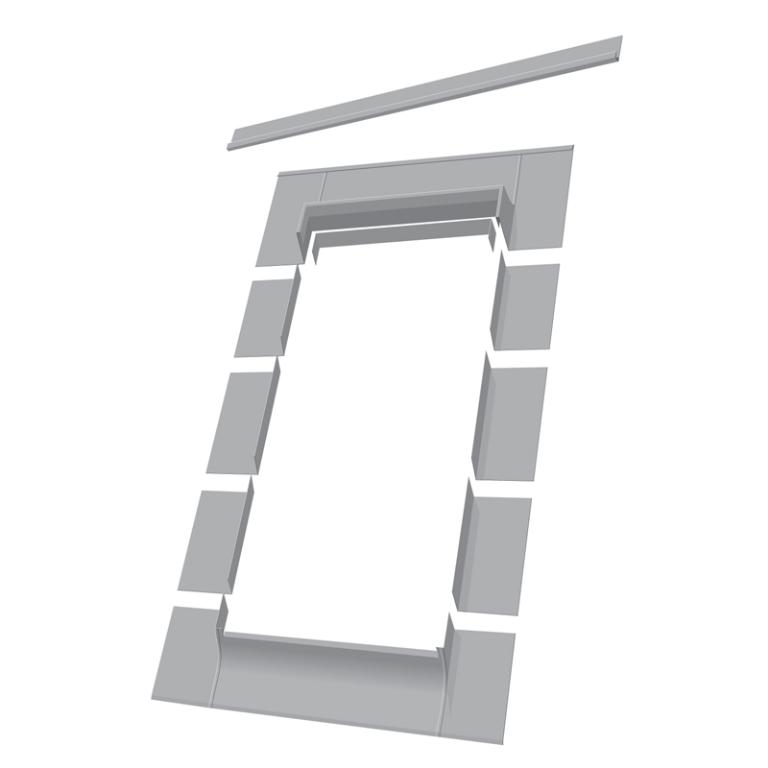

Constituents of the Flashing: This flashing is made up of lower, upper and side elements, the dimensions of which are dependent on the window height. The side elements of the flashing are laid alternately with the roof covering. The flashing comprises an apron with PVC fillet glued to the underside, which allows easy and secure connection to profiled roof coverings. A weep flap allows condensation to drain away from the window.

Flashing parts: bottom part of the flashing side modular elements top parts of the flashing gutter additional covering profile

Fakro roof windows provide the highest standard in roof windows, offering knot free timber every time, high quality finishes and a 20 year guarantee

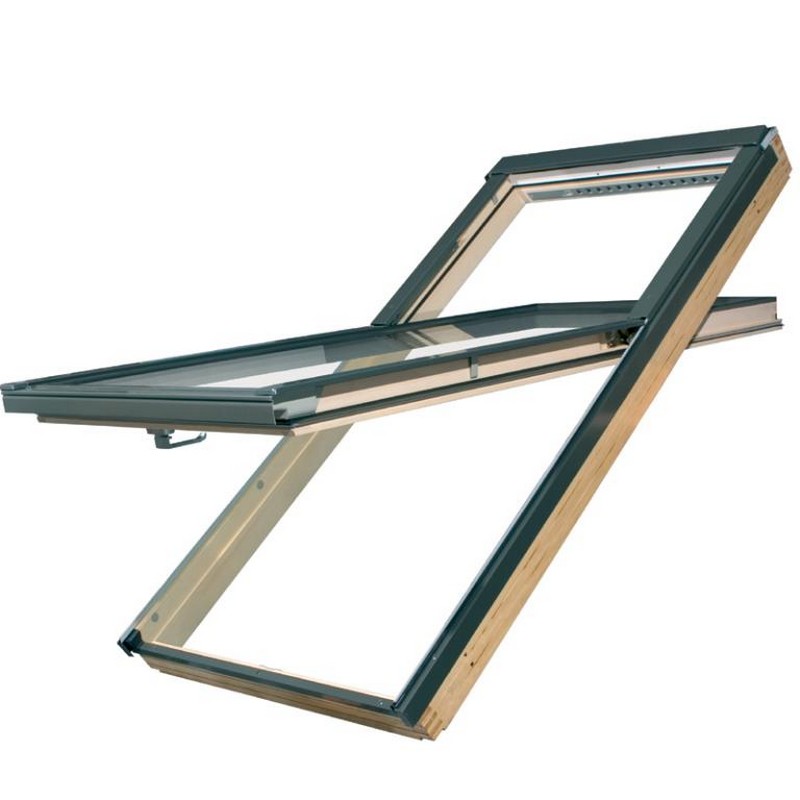

Fakro Roof Windows

Fakro roof windows are designed to provide a focal point for any room whether you use them individually or in combinations. Their stylish appearance is matched by the highest standard of manufacturing and finishing which means you can rest assured they will go on looking goos for years to come. Fakro Roof Windows offer a perfect combination of style, sustainability, security and long design life. To achieve such high performance involves ongoing refinement and improvement to every roof window that that Fakro designs.

Bigger glazing area and more light

The design of Fakro roof windows enables more light to be brought to any room. By placing the air inlet at the top of the frame, Fakro roof windows provide a glazing area up to 10% bigger than competitors products of the same size, in which the ventilation flap has been fitted in the sash. The operating handle in the base of the sash is always more convenient for the user.

Timber quality

The redwood pine that Fakro ues offers the clearest visual evidence of roof window quality. Not only does its close grain look stylish, timber comes from FSC certified sources. The double vacuum process using water-borne preservatives provideslasting dimensional stability and all windows are finished with three coates of environmentally freindly lacquer.

Windows for bathrooms, wetrooms and kitchens

Fakro offers two types of roof window for rooms in which high levels of humidity are created. You have the choice of either polyurethane-coated pine or PVC in white, golden oak and pine finishes. So, whether you want to match the existing windows and doors or have a smooth timber finish in white Fakro has the perfect solution. Fakro PVC veneers also achieve the highest level of measurable performance - Class A - EN12608

Automatic air ventilation in all windows

Many manufacturers use a standard manually operated vent which is inefficient, causing unnecessary heat loss.The Fakro V40P automatic vent which is installed in Fakro pine roof windows is activated by changes in atmospheric pressure. It provides the optimum balance of fresh air regardless of weather conditions

Exceptional security

Fakros Top Safe system provides peace of mind that our roof windows offer exceptional burglary resistance. In contrast to products which break simply by applying foot pressure, TopSafe provides additional hinge and lock reinforcement to prevent the sash from being forced. An EUStandard (EN13049) now means you can compare roof window security and all Fakro products achieve a minimum of Class 3. Fakro also manufactures a standard centre pivotwindow, the FTP-V P2 Secure,m which has security glazing.

The highest level of energy saving performance

What really sets Fakro roof windows apart is their low level of heat loss. Unlike some manufacturers who provide U-values just for glazing units, Fakro provides information for the whole window.

Warm glazing spacers

Many roof windows use metallic spacers to seperate panes and these encourage condensation to form by forming a cold 'bridge' between them. By contrast, Fakro uses only warm spacers in order to ensure that this otherwise common problem does not affect Fakro roof windows.

Ease of Installation

The easy to use 'bracket fix' installation system enables windows to be fitted either to rafters or battens. Windows can also be fitted onto sarking

Performance Guarantees

Whether buying natural pine, PU-coated pine or PVC Fakro offers a 10-year warranty for all windows and a 20 year warranty on glasing units.
